CENTRIFUGAL SINGLE INLET FANS
CRMT Series

> Download images

Serial CRMT

CRMT/4-500/205 11KW (400V50HZ)LG VE

  • <strong>Approved to EN12101-3 standard Certificate number 0370-CPD-0406</strong>

    Approved to EN12101-3 standard Certificate number 0370-CPD-0406

  • <strong>CONTINUOUS</strong>

    CONTINUOUS

  • <strong>Car Parks</strong>

    Car Parks

CRMT/4-500/205 11KW (400V50HZ)LG VE

Range of single inlet direct drive centrifugal fans designed for smoke extraction in fire conditions and certified F400-120 (CE marked) and suitable for the continuous extraction of air stream up to 300ºC.
All casings are manufactured from electro-welded sheet steel protected against corrosion by grey epoxy-polyester paint coating.
All models incorporate forward curved centrifugal impellers manufactured from galvanised sheet steel.
Available, depending upon the model, with single or three phase motors in 4 or 6 poles.

Motors
All motors are IP55, class F.
Electrical supply:
-Three phase 230/400V-50Hz up to 3kW.
-Three phase 400V-50Hz, for higher power motors.
(See characteristics chart).

Additional Information

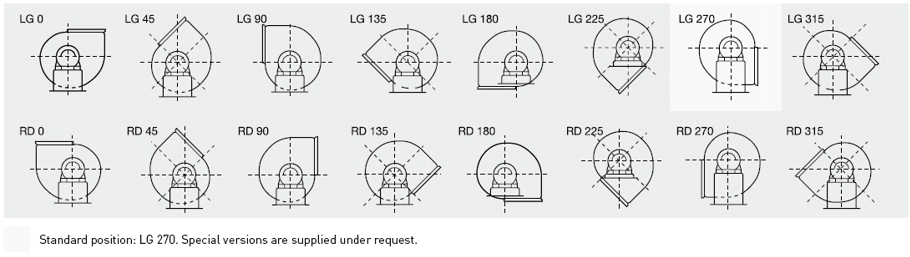

The scroll can be orientated in 8 different positions as per the table below.
Standard supplied position: LG 270.

On request
Fan supplied in RD position.
Fan fitted with 2-speed motor.

Technical data

Acoustic characteristics

Technical characteristics

Curves

Dimensions

Orientation

Orientation

ErP Information

Accessories
