Centrifugal Single Inet Fans
CXRT Series, F400-120 Rated Fans

> Download images

Serial CXRT

CXRT/4-630 5,5KW RD000 *400V 50*

  • <strong>Approved to EN112101-3 standard<br>Certificate nº 0402-CPD-453801</strong>

    Approved to EN112101-3 standard
    Certificate nº 0402-CPD-453801

  • <strong>Continuous </strong>

    Continuous

  • <strong>Car Parks</strong>

    Car Parks

  • <strong>Industrial and Commercial kitchens</strong>

    Industrial and Commercial kitchens

CXRT/4-630 5,5KW RD000 *400V 50*

Range of single inlet direct driven centrifugal fans designed for smoke extraction in fire conditions and certified F400-120 (CE marked) and suitable for the continuous extraction of air stream up to 120ºC.
The CXRT range is supplied with galvanized steel plate housing mounted with Pittsburg system.
Welded backward curved centrifugal impellers protected by epoxy paint.

Motors
All motors are IP55, Class F.
2, 4, 6 or 8 pole, depending on version.
2 speed models (2/4, 4/6, 4/8, 6/8 and 6/12).
Electrical supply:
Three phase 230/ 400V-50Hz up to 3 kW.
400V-50Hz for higher motor powers and 2 speed motors.
(See characteristics chart).

Additional information

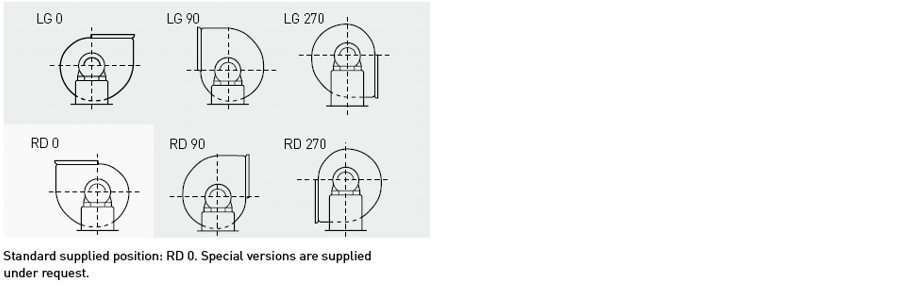

The scroll can be orientated in 3 different positions as per the table below.
Standard supplied position: RD0.

On request:
Fan supplied in LG positions.
Versions protected against corrosion by epoxy paint coating.
Fan fitted with 2-speed motor.

Technical data

Acoustic characteristics

Technical characteristics

Curves

Dimensions

Curve - Example of selection

Curve - Example of selection

Orientation

Orientation

ErP Information

Accessories
