Serial AKOR ST/AKOR ST HR
AKOR ST D150
-
-
Heat recovery unit
-
Single dwellings
-
Multi-dwelling blocks
Energy recovery ventilation systems for single dwelling houses or multi-dwelling blocks, with crossflow heat exchanger.
It guarantees continuous air replacement in single dwelling houses or multidwelling blocks up to 92% of efficiency.
It connects, via ducting, to extraction outlets in each of the ‘wet’ rooms.
The fresh air that has been pre heated enters the rooms through supply airvents. Equipped with 2 centrifugal fans (a supply and an extract fan), each with a 230V-50Hz motor, Class B, 2-speed, designed for continuous operation, and terminal housing to connect the power supply cable.
It guarantees continuous air replacement in single dwelling houses or multidwelling blocks up to 92% of efficiency.
It connects, via ducting, to extraction outlets in each of the ‘wet’ rooms.
The fresh air that has been pre heated enters the rooms through supply airvents. Equipped with 2 centrifugal fans (a supply and an extract fan), each with a 230V-50Hz motor, Class B, 2-speed, designed for continuous operation, and terminal housing to connect the power supply cable.

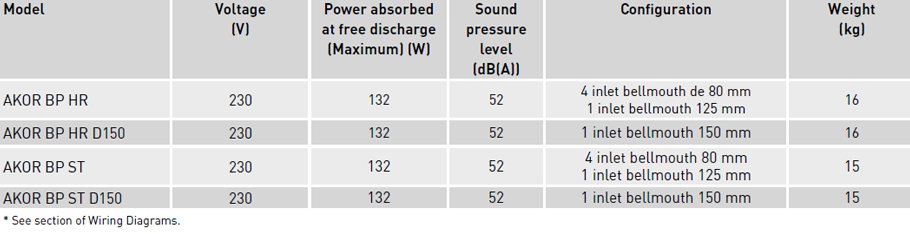

Technical characteristics

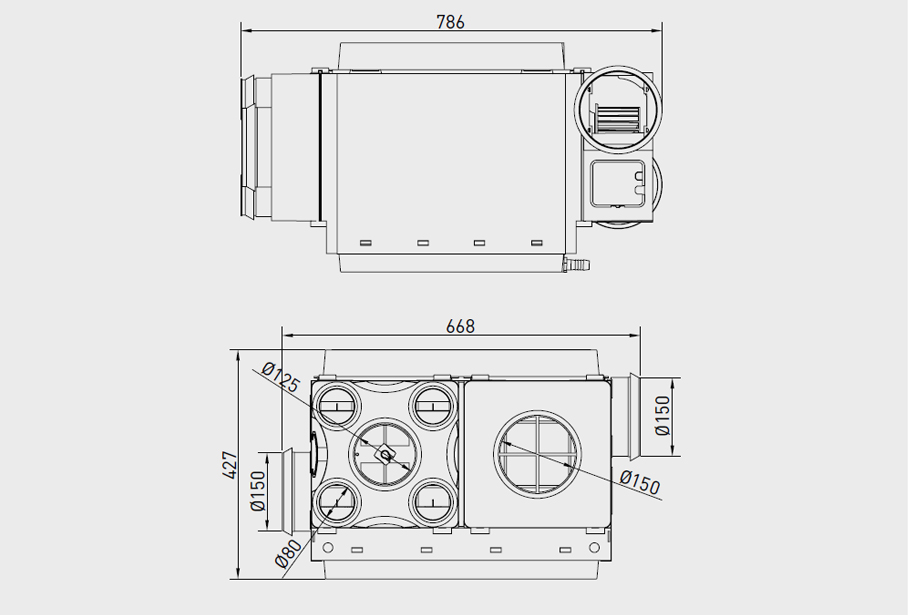

Dimensions

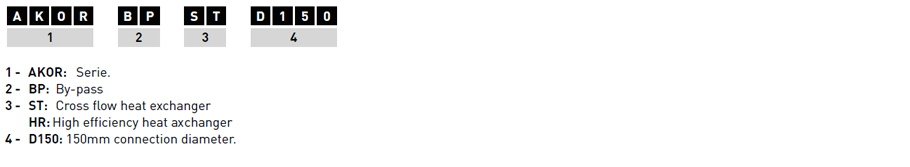

Reference

Installation

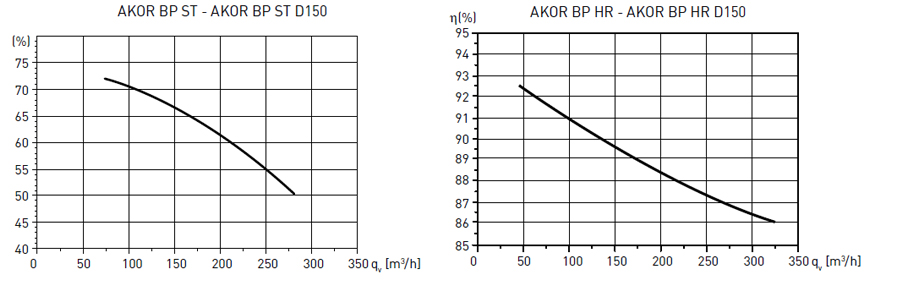

Performance curve
