Counter-flow, high-efficiency heat recovery unit
IDEO2 325 ECOWATT

> Download images

Serial IDEO 325 ECOWATT

IDEO2 325-ECOWATT

  • IDEO 325 ECOWATTbdp532
  • IDEO 325 ECOWATTbdp547
  • <strong>Single dwellings</strong>

    Single dwellings

  • <strong>Multi-dwelling blocks</strong>

    Multi-dwelling blocks

  • <strong>Heat recovery units</strong>

    Heat recovery units

  • AVAILABLE IN AUGMENTED REALITY

    AVAILABLE IN AUGMENTED REALITY

IDEO2 325-ECOWATT

Whole house heat recovery unit with a high-efficiency heat exchanger up to 92% with constant airflow setting, very low consumption EC motor and low sound level.
Provides a constant supply of fresh tempered air into the living spaces of a home whilst extracting condensation, smells and smoke from kitchens, bathrooms and toilets.

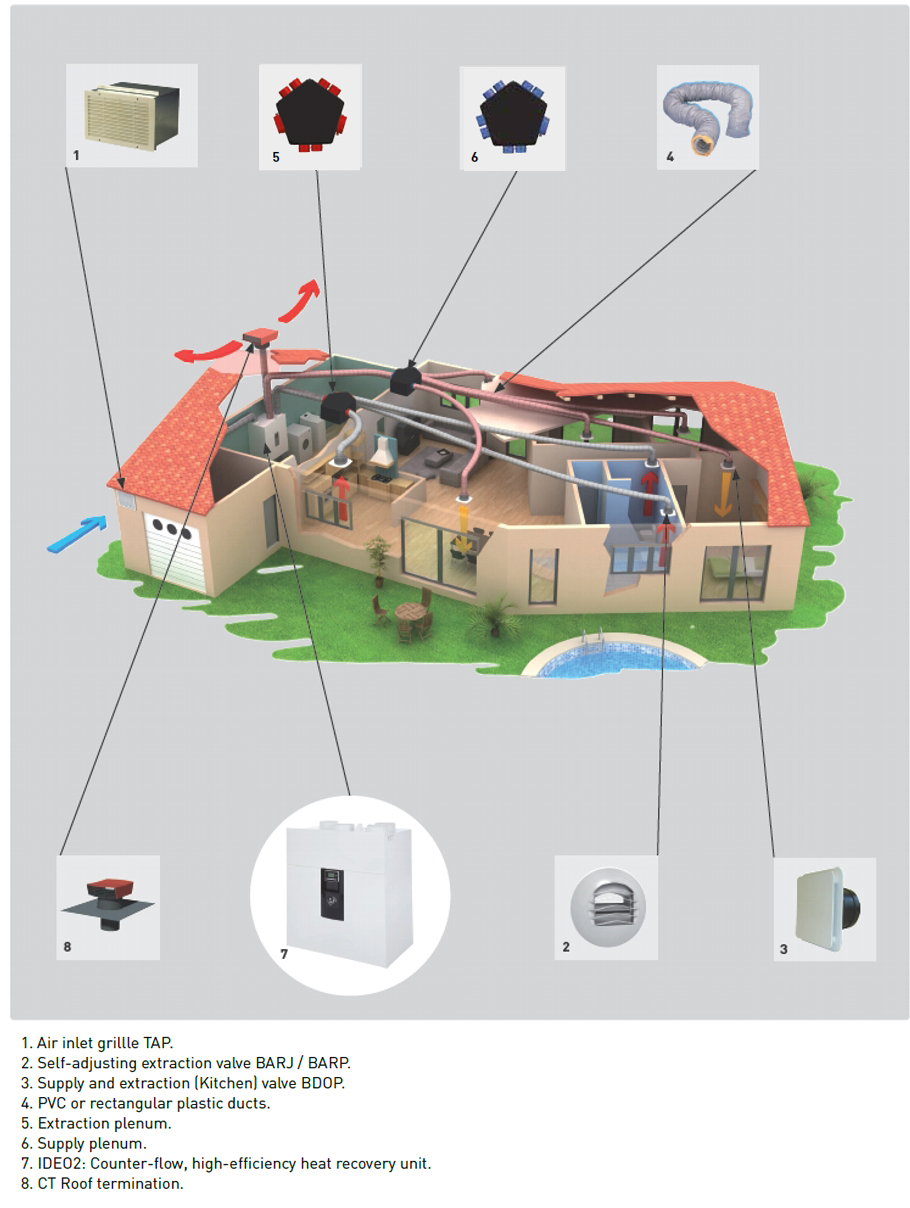

The central unit is completed with extraction outlets located in different rooms (kitchen, toilets, bathroom) and inlets located in the main rooms (dining room, bedrooms).

Features
-2 constant flow fans.
-Counter-flow heat exchanger with up to 92% performance.
-Wireless remote control.
-Wireless kitchen boost.
-F5 inlet filter with G4 pre-filter.
-G4 extraction filter.
-100% summer by-pass option for free cooling.
-4 nozzles, Ø 150/160 mm.
-1 drain for vertical fitting.
-1 antenna with potential transmission/reception range of 150 metres in a open space.
-1 wall bracket.
-Air tight construction.

Technical data

Acoustic characteristics

Technical characteristics

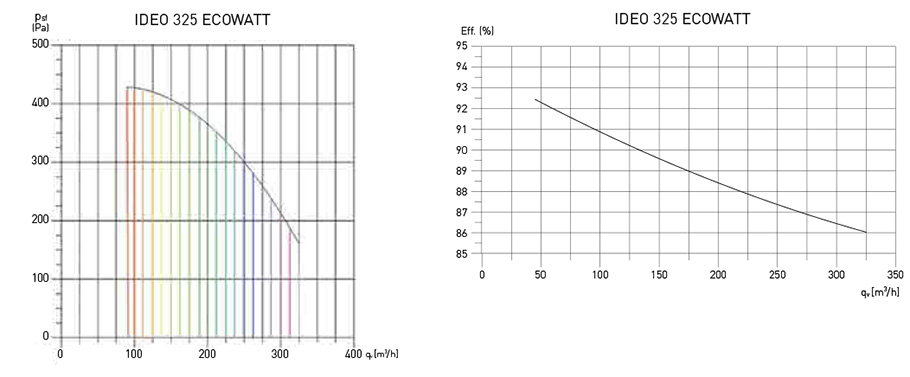

Curves

Curves

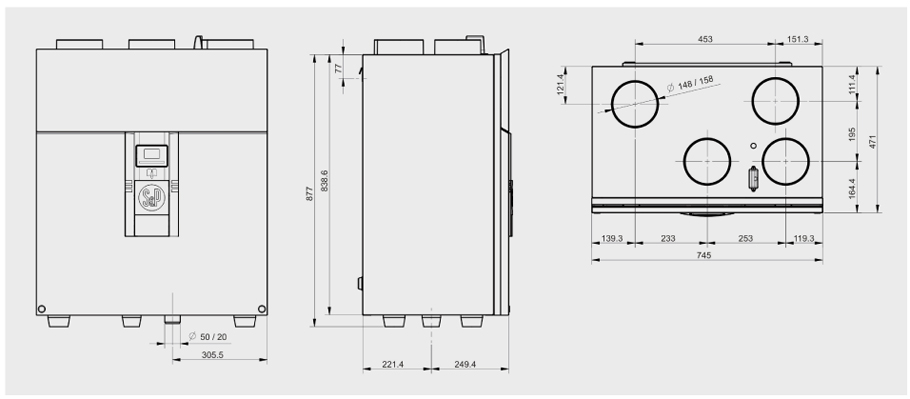

Dimensions

Dimensions

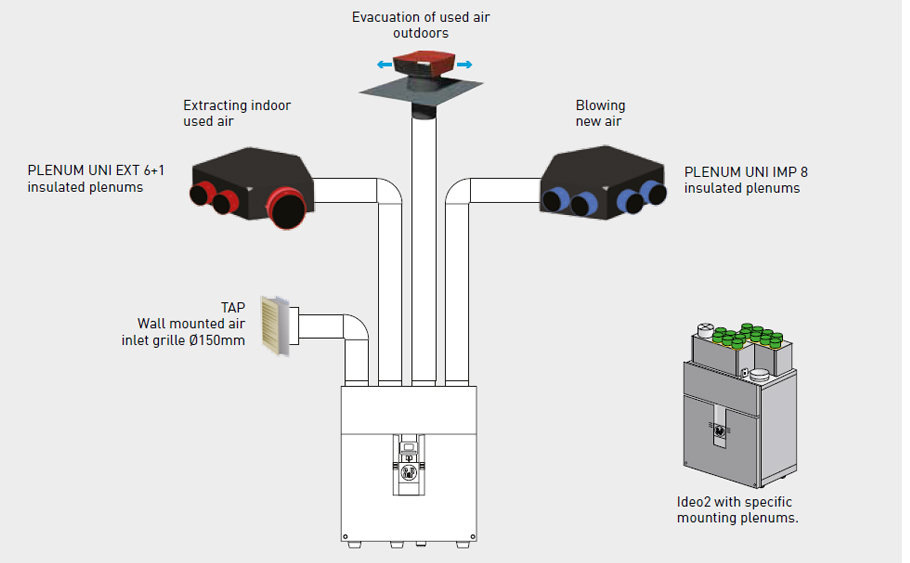

Fitting

Fitting

Installation

Installation

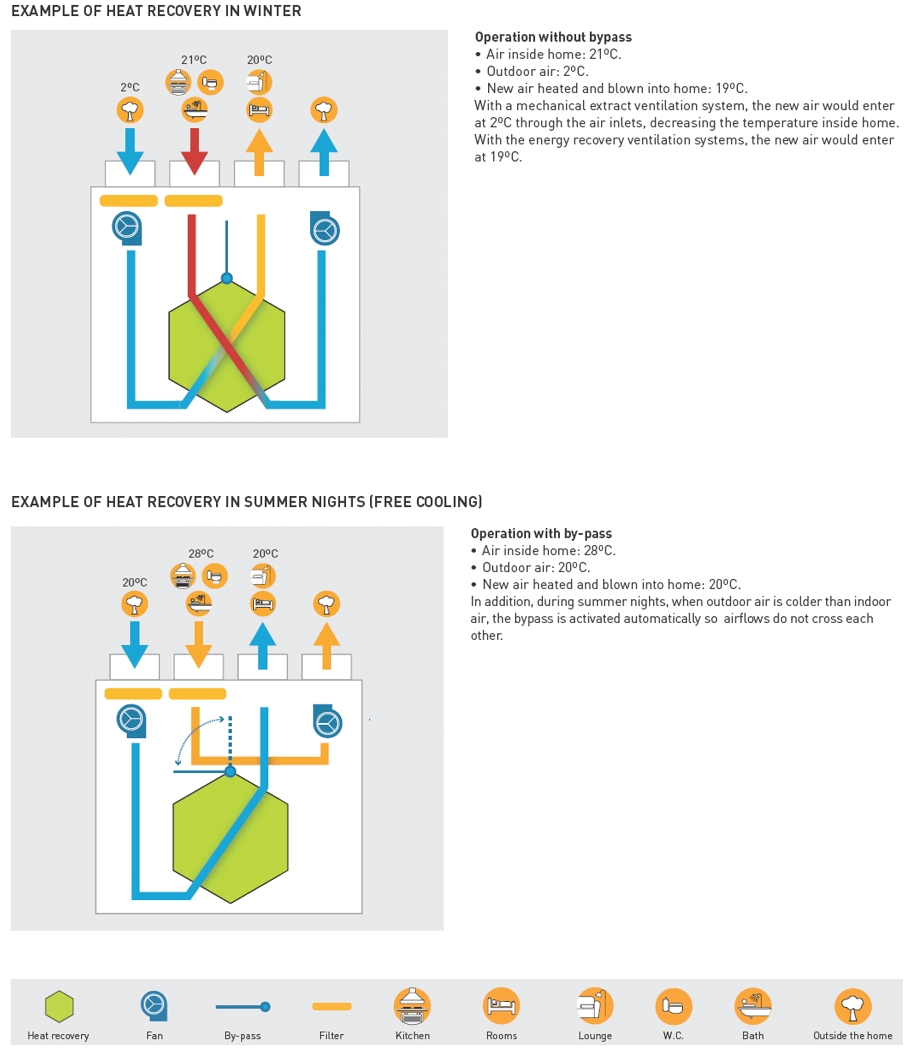

Heat recovery examples

Heat recovery examples

Whole House Extract Units Single Dwellings

Whole House Extract Units Single Dwellings

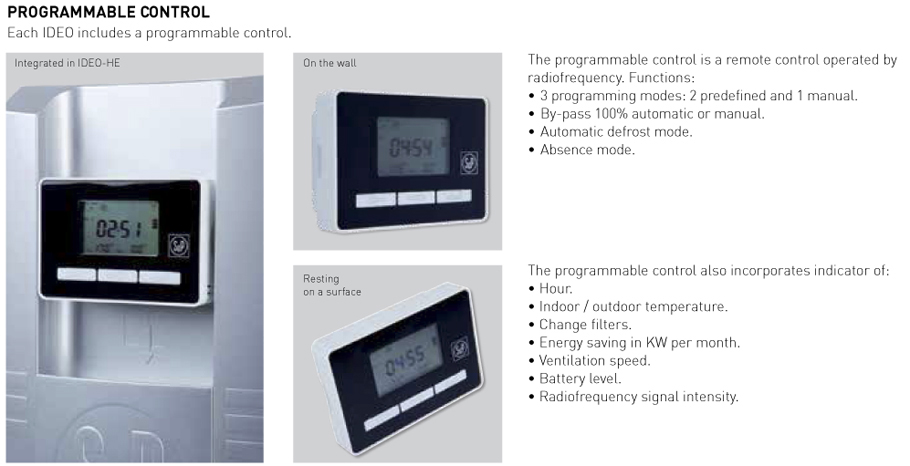

Control

Control

ErP Information
