WHOLE HOUSE EXTRACT UNITS + DOMESTIC WATER HEATER
CETHEO Series

> Download images

CETHEO

Thermodynamic water heater, combined with an automatic or humidity-controlled whole house extract unit. The air from bathrooms and kitchen is sent to a high efficient heat pump (Integrated into CETHEO). The system recovers the heat from the exhaust air via the whole house extract unit.The system delivers a very stable and high efficiency, reducing the energy consumption for the production of domestic hot water by up to 75%.
  • High COP: 4,2 according to EN 255-3 (150 m3/h), 3.64 EN 16 147 (150 m3/h).
  • Thermal and acoustic insulation: 28,4 dB(A) at 2 meters
  • Whole House extract unit motor with very low power consumption: 17 W.
  • Heat pump maximum power consumption: 380 W.
  • Nominal power: 720 W.
  • Nominal power: 1500W in Boost mode
  • Heat pump and filter automatic bypass, reduces the whole house extract unit consumption and increases the life of the filter by up to 60%
  • ’Boost’ function reduces the time to heat the water.
  • Provides hot water 24 hours a day
  • Enameled steel tank of 187 liters (equivalent to a traditional 300l tank)
  • Hot water for up to 6 people
  • Volume of water available at +40ºC: 244 liters.
  • Absorbed power, within 24 hours, to maintain the set-point temperature.
  • Anti-legionella cycle.
  • Anti-corrosive system.
  • Nominal power: 810 W.
  • Nominal power: 1500W in Boost mode
  • Maximum water temperature, with heat pump, 61,5°C.
  • Maximum water temperature, in Boost and anti-legionella mode, 65 °C.

Technical data

Technical characteristics

Technical characteristics

Function

Function

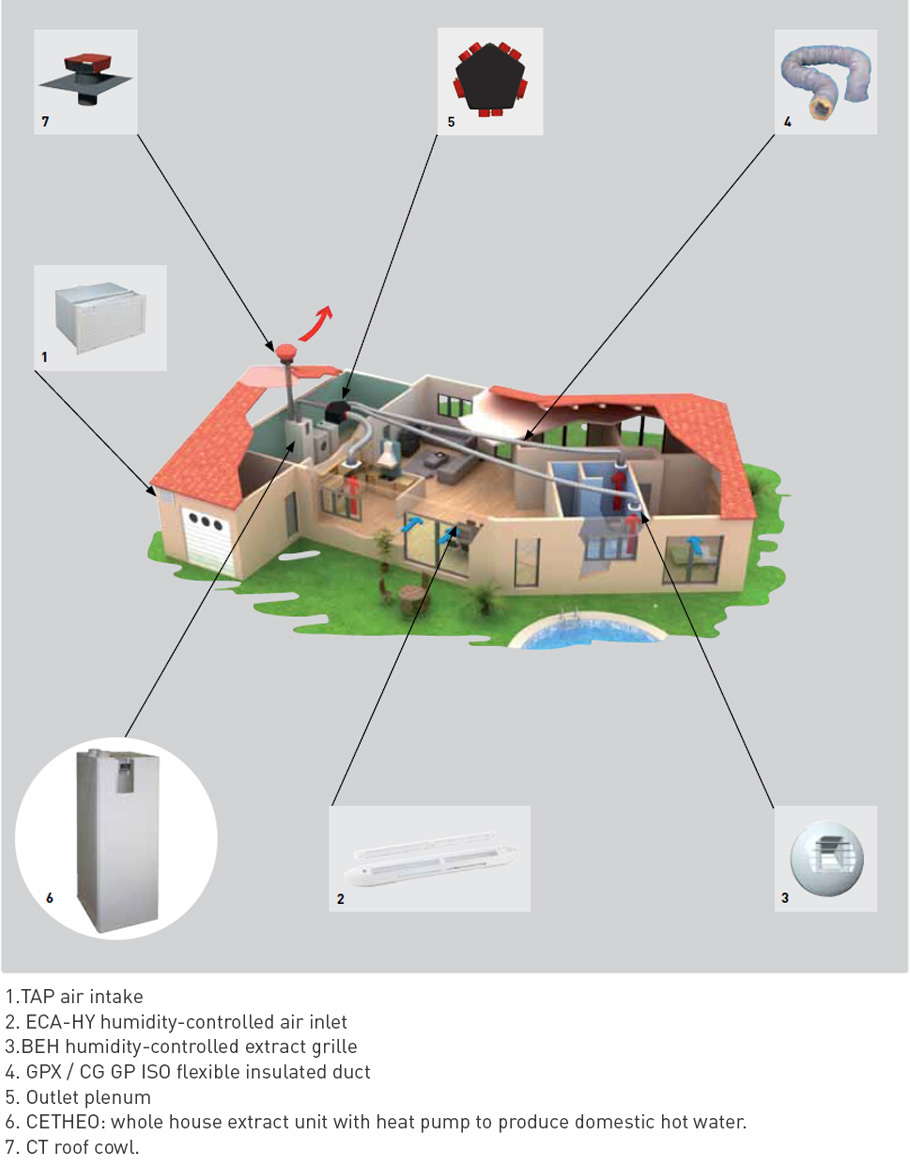

Heat recovery examples

Heat recovery examples

Operation

Operation

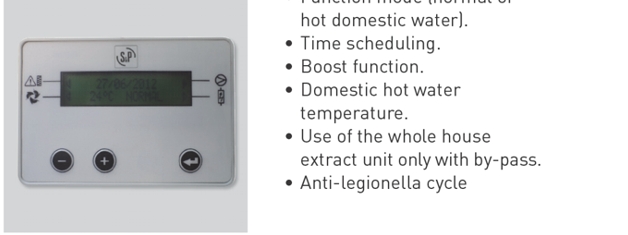

Control

Control
