AXIAL FANS - DIRECT DRIVE
ES

ES

61-ES
  • Print this page
  • Download the catalog series in pdf

ES

Use
This series is particularly suitable for the removal of air, fumes and gases (foundries, woodworks, paper mills, heating plants, chemical industries).
Working temperature
- 20°C + 40°C.
Construction

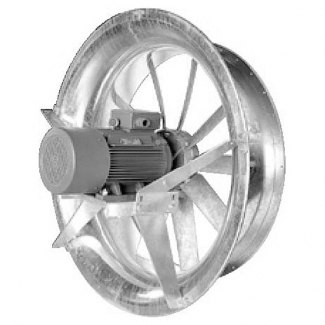

Axial-flow fan, direct drive. The impeller is made of diecast aluminium and has adjustable blades. The housing is made of welded sheet steel with inlet nozzle. For the size ≥ 1120 the fans are standard hot galvanized.
Motor
The motor is three-phase, 230/400V, 50 Hz, B3 (other frequencies, tensions on demand).
Direction of the air
Normally supplied with the air flowing from the motor to the impeller (A), on demand the fans can be supplied with the direction from the impeller to the motor (B).
