Twin Fans
MELLIZO ECOWATT Series

Show Less

Consult Available Models

Access to Technical Information

Description Details

Consult Available Models

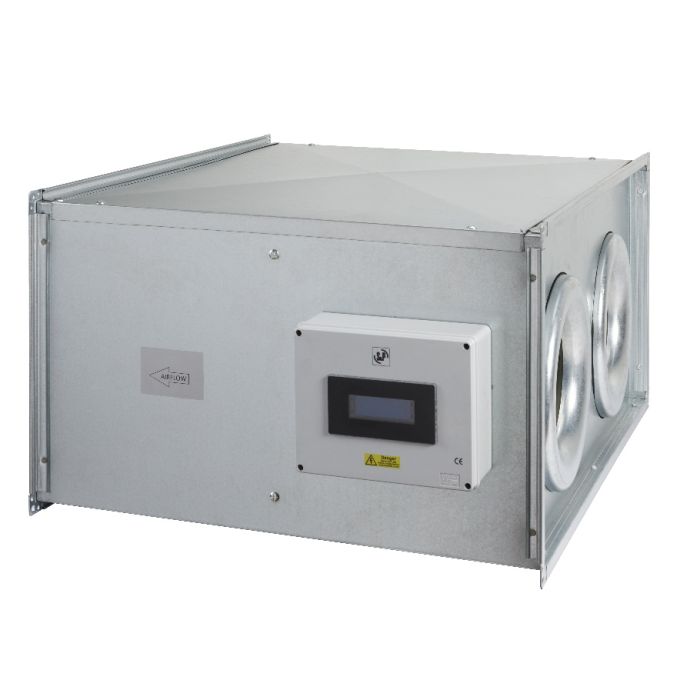

Acoustic twin cabinet fans manufactured from galvanised steel sheet and internally lined with 25mm thickness of fireproof acoustic insulation (M0). All models incorporate two S&P ECOWATT backward curved centrifugal fans, brushless EC motors with thermal overload protection. Integral control unit providing automated run and standby by tacho/low current sensing, duty-sharing adjustable from 3 to 24 hours, (in 3 hour steps) and BMS output/remote fault indication.

Remote On/Off via volt-free contact and/or 230V signal. Variable Speed Control, manually via an optional secondary S&P REB ECOWATT or REB-CVF controller, or automated via a 0-10V signal from an external source.

Installer-defined fixed speed control either continuous or on-demand (triggered by an external switch), or one, two or three speeds defined during installation to provide a minimum/middle/maximum speed ventilation system, the middle and maximum speeds being selected by an external switch/sensor (either volt-free and/or 230V).
Integral over-run timer.
Electrical supply: Single phase 230V-50Hz
Working temperature from -20ºC to +40ºC

Attributes

Digital display of running, stopped and/or fault condition.

Pitched lid allows for external siting. Can be mounted horizontally or vertically (airflow rising only).<br>Drop-rods can be supplied as an accessory for suspending the unit from the ceiling.

Pitched lid allows for external siting. Can be mounted horizontally or vertically (airflow rising only).
Drop-rods can be supplied as an accessory for suspending the unit from the ceiling.
