CBM
Low Pressure Centrifugal Fans
CBM Series
CBM Series
Show More
Show Less

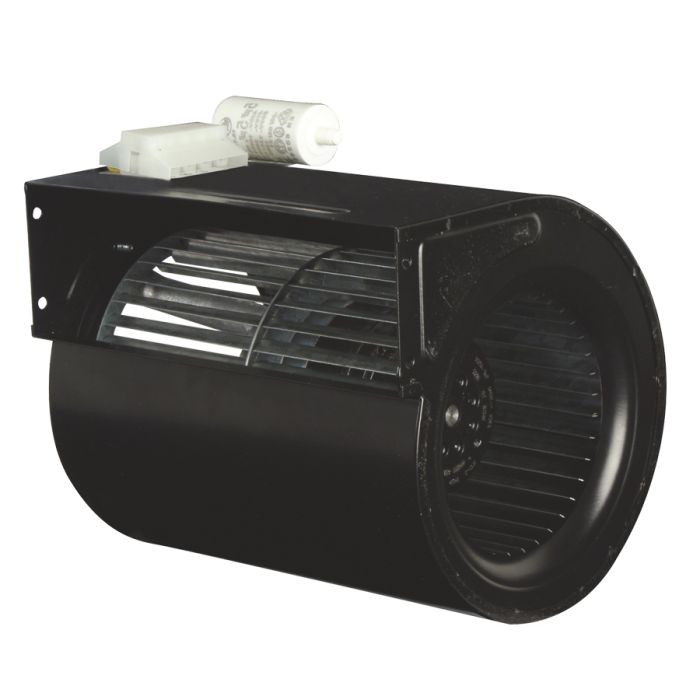

Range of double inlet direct driven low pressure centrifugal fans manufactured from galvanised sheet steel. All the models are fitted with forward curved centrifugal impellers manufactured from galvanized sheet steel.
Motors
Housing closed motors, IP44, class F, equipped with thermal protection and ball bearings greased for life.
Electrical supply:
4 or 6 pole depending on version. Single phase 230V-50Hz (capacitor fitted On the fan housing).
Three phase 230/400V-50Hz. (See characteristics chart).
On request
Housing open motors IP20, class F. Coupling flange fitted at the fan outlet (B version). Special version kitchen IP55, class F. Three phase motors suitable for frequency inverter control.
Motors
Housing closed motors, IP44, class F, equipped with thermal protection and ball bearings greased for life.
Electrical supply:
4 or 6 pole depending on version. Single phase 230V-50Hz (capacitor fitted On the fan housing).
Three phase 230/400V-50Hz. (See characteristics chart).
On request
Housing open motors IP20, class F. Coupling flange fitted at the fan outlet (B version). Special version kitchen IP55, class F. Three phase motors suitable for frequency inverter control.
Attributes
Anti-vibration mountsAll motors are fitted with support including rubber antivibration mounts reducing the noise transmitted to the installation.
Impeller dynamically balanced
Impeller dynamically balanced, according to ISO 1940 standard, providing vibration free operation.
