FE-P
HIGH PRESSURE FORWARD BLADES IMPELLER - DIRECT DRIVE
FE-P
FE-P
Show More
Show Less

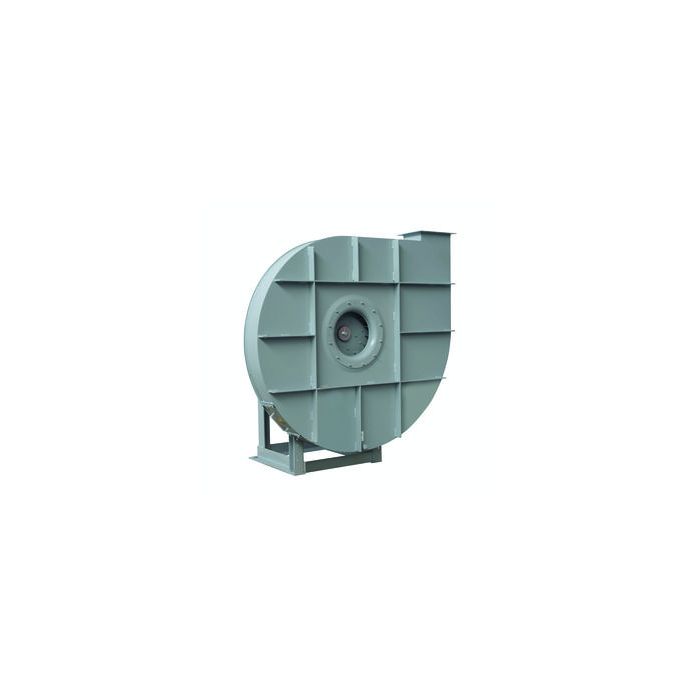

Direct-coupled centrifugal fan with single suction. Manufactured from carbon steel protected against corrosion by cathodic electrocoating + polyurethane paint RAL 7045.
Air temperatures to be handled: -20ºC/+100ºC continuous.
Versions
• Version 4: Impeller mounted on the motor shaft type B3 supported by the foot or bracket. Version with cooling impeller up to +220ºC.
• Version 5: Impeller mounted on the motor shaft type B5 with flange fixed directly to the side of the volute. Version with cooling impeller up to +220ºC.
• Version 8: Coupling via elastic joint connecting the motor to the fan shaft. Version with cooling impeller up to +300ºC.
Motors
2-pole, high efficiency IE3*, three-phase supply voltage 230/400V 50Hz motor size 112 and 400/690V 50Hz for larger motors. Protection IP55, Class F.
*For power ratings between 75 kW and 200 kW, the motor will be IE4.
On request
• Manufacture in different construction materials.
• 60 Hz versions.
• External paint in various RAL colours.
• Hot-dip galvanising of the fan’s static parts.
• Construction for corrosive environments.
• Versions with wear-resistant materials.
• Motors for special applications.
• Motors suitable for control with frequency inverter.
• Available accessories: flexible connections, inspection door, drain purge, dampers, protective grids, filters, silencers, flow regulator, valves and dampers.
• Sealed fans.
• Thermal insulation.
Air temperatures to be handled: -20ºC/+100ºC continuous.
Versions
• Version 4: Impeller mounted on the motor shaft type B3 supported by the foot or bracket. Version with cooling impeller up to +220ºC.
• Version 5: Impeller mounted on the motor shaft type B5 with flange fixed directly to the side of the volute. Version with cooling impeller up to +220ºC.
• Version 8: Coupling via elastic joint connecting the motor to the fan shaft. Version with cooling impeller up to +300ºC.
Motors
2-pole, high efficiency IE3*, three-phase supply voltage 230/400V 50Hz motor size 112 and 400/690V 50Hz for larger motors. Protection IP55, Class F.
*For power ratings between 75 kW and 200 kW, the motor will be IE4.
On request
• Manufacture in different construction materials.
• 60 Hz versions.
• External paint in various RAL colours.
• Hot-dip galvanising of the fan’s static parts.
• Construction for corrosive environments.
• Versions with wear-resistant materials.
• Motors for special applications.
• Motors suitable for control with frequency inverter.
• Available accessories: flexible connections, inspection door, drain purge, dampers, protective grids, filters, silencers, flow regulator, valves and dampers.
• Sealed fans.
• Thermal insulation.
ATEX versions
On request, explosion proof version fans in accordance with 2014/34/UE (ATEX directive):
• Gas:
2G IIB T2-T3-T4
2G IIB+H2 T2-T3-T4
3G IIB T2-T3-T4
3G IIB+H2 T2-T3-T4
• Non-conductive dust
2D IIIB T125°C-T135°C-T195°C-T295°C
3D IIIB T125°C-T135°C-T195°C-T295°C
• Conductive dust (compulsory IP65 motor):
2D IIIC T125°C-T135°C-T195°C-T295°C
3D IIIC T125°C-T135°C-T195°C-T295°C
On request, explosion proof version fans in accordance with 2014/34/UE (ATEX directive):
• Gas:
2G IIB T2-T3-T42G IIB+H2 T2-T3-T43G IIB T2-T3-T43G IIB+H2 T2-T3-T4• Non-conductive dust
2D IIIB T125°C-T135°C-T195°C-T295°C3D IIIB T125°C-T135°C-T195°C-T295°C• Conductive dust (compulsory IP65 motor):
2D IIIC T125°C-T135°C-T195°C-T295°C3D IIIC T125°C-T135°C-T195°C-T295°C
Attributes
Forward curved impeller
