HIGH PRESSURE FORWARD BLADES IMPELLER - BELT DRIVE
FE-P
FE-P
Show More
Show Less

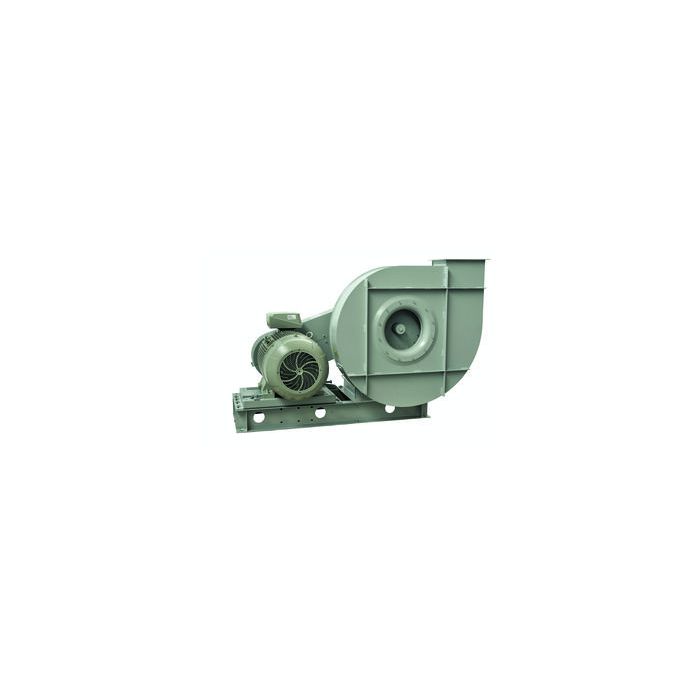

Belt drive, single inlet centrifugal fan. Manufactured from carbon steel protected with cataforesis primer + polyurethane paint finish RAL 7045.
Working temperature range: -20ºC/+100ºC continuously. Version with cooling disk up to +300°C.
Standard arrangement
• Arrangement 1: Bare shaft without transmission and motor.
• Arrangement 9: Belt drive. Motor fixed aside the support frame.
• Arrangement 12: Belt drive. Fan and motor fitted on the base frame.
Motors
2, 4 or 6 pole, IE3* high efficiency (the rpm of each motor will be adapted according to the calculation for each drive), three-phase 230/400V 50Hz up to motor size 112 and 400/690V 50Hz for higher motors. IP55 protection, class F.
*From 75kW to 200kW, the motor will be IE4.
On request
• Manufactured from different materials.
• Painted in different RAL colour.
• Hot dip galvanized static parts.
• Corrosion proof construction.
• Wear proof construction
• Motors for special applications.
• High temperature construction (up to +600ºC).
• Motors suitable for VSD.
• Accessories: Flexible joints, inspection door, casing drain, AV-mounts, protection nets, filter, silencer, inlet discharge governor, valves, dampers.
• Gas tight construction.
• Thermal insulation.
Working temperature range: -20ºC/+100ºC continuously. Version with cooling disk up to +300°C.
Standard arrangement
• Arrangement 1: Bare shaft without transmission and motor.
• Arrangement 9: Belt drive. Motor fixed aside the support frame.
• Arrangement 12: Belt drive. Fan and motor fitted on the base frame.
Motors
2, 4 or 6 pole, IE3* high efficiency (the rpm of each motor will be adapted according to the calculation for each drive), three-phase 230/400V 50Hz up to motor size 112 and 400/690V 50Hz for higher motors. IP55 protection, class F.
*From 75kW to 200kW, the motor will be IE4.
On request
• Manufactured from different materials.
• Painted in different RAL colour.
• Hot dip galvanized static parts.
• Corrosion proof construction.
• Wear proof construction
• Motors for special applications.
• High temperature construction (up to +600ºC).
• Motors suitable for VSD.
• Accessories: Flexible joints, inspection door, casing drain, AV-mounts, protection nets, filter, silencer, inlet discharge governor, valves, dampers.
• Gas tight construction.
• Thermal insulation.
ATEX versions
On request, explosion proof version fans in accordance with 2014/34/UE (ATEX directive):
• Gas:
2G IIB T2-T3
2G IIB+H2 T2-T3
3G IIB T2-T3
3G IIB+H2 T2-T3
• Non-conductive dust:
2D IIIB T195°C-T295°C
3D IIIB T195°C-T295°C
• Conductive dust (compulsory IP65 motor):
2D IIIC T195°C-T295°C
3D IIIC T195°C-T295°C
On request, explosion proof version fans in accordance with 2014/34/UE (ATEX directive):
• Gas:
2G IIB T2-T32G IIB+H2 T2-T33G IIB T2-T33G IIB+H2 T2-T3• Non-conductive dust:
2D IIIB T195°C-T295°C3D IIIB T195°C-T295°C• Conductive dust (compulsory IP65 motor):
2D IIIC T195°C-T295°C3D IIIC T195°C-T295°C
Attributes
Forward curved impeller
