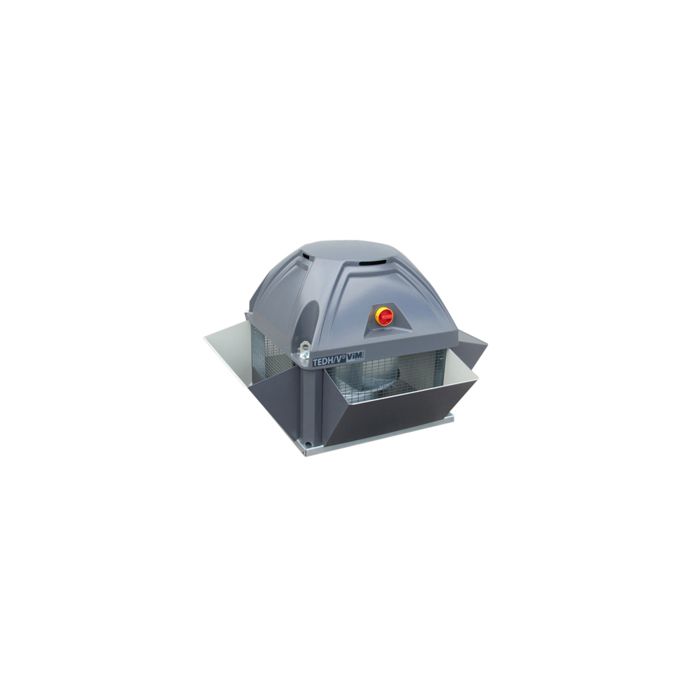

TEDV F400
TEDV F400 - Smoke Extraction Fans - F400 120 Turrets - Centrifugal - Reaction below 38,000 m3/h
Show More
Show Less
 |  |  |  |
- Approved F400 120 with frequency converter or relay box
- Can be installed next to a wall by sealing one side
- Relay box mounted and wired on both versions
- Continuous operation up to 120°C
Application
Extraction of smoke and hot gases in case of fire.
Extraction of stale air from commercial and industrial premises.
Extraction of pollutants in professional kitchens.
Maximum temperature of extracted air under continuous operation: 120°C.
TEDH F400: horizontal discharge.
TEDV F400: vertical discharge
- Motor and turbine not visible.
- Less soiling of the immediate surroundings.
- Improved protection against water ingress.
Airflows from 200 to 34,000 m3/h.
Construction
- High-performance reaction turbine made of galvanized steel.
- Convergent/divergent type intake bell for aerodynamic optimization and increased turret efficiency, with reduced noise levels
