EBC

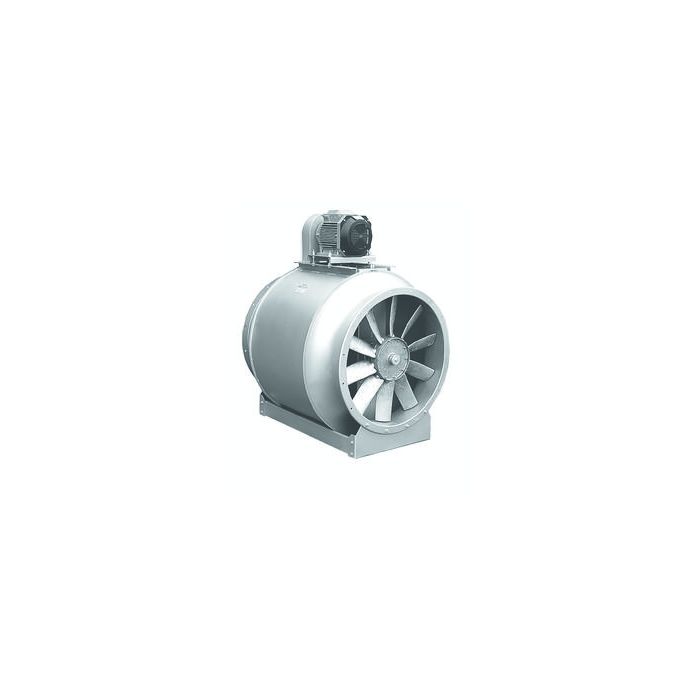

AXIAL FANS - BELT DRIVE
EBC
EBC
Show More
Show Less
Use
Suitable for the removal of contaminated air with medium temperatures.
Working temperature
- 20°C + 180°C.
Construction
Axial-flow fan, belt drive, The impeller is made of die-cast aluminium and has adjustable blades. Shaped inlet and hot galvanized housing.
Special constructions
On demand these fans can be supplied with a housing made of stainless steel AISI 304 -316, with special coatings.
Motor
The motor is three-phase, 230/400 V, 50 Hz, B3; (other frequencies, tensions on demand).
Direction of the air
Normally supplied with the air flowing from the support to the impeller to the support (B), with special orders the fans can be supplied with the direction from the impeller to the support (A).
Suitable for the removal of contaminated air with medium temperatures.
Working temperature
- 20°C + 180°C.
Construction
Axial-flow fan, belt drive, The impeller is made of die-cast aluminium and has adjustable blades. Shaped inlet and hot galvanized housing.
Special constructions
On demand these fans can be supplied with a housing made of stainless steel AISI 304 -316, with special coatings.
Motor
The motor is three-phase, 230/400 V, 50 Hz, B3; (other frequencies, tensions on demand).
Direction of the air
Normally supplied with the air flowing from the support to the impeller to the support (B), with special orders the fans can be supplied with the direction from the impeller to the support (A).
ATEX Versions
Available on request, explosion-proof versions according to the ATEX Directive for three-phase models:
For operation at temperatures from -20ºC to +60ºC, ambient (absolute) pressure from 0.8 bar to 1.1 bar, according to EN 14986.
• Gas:
2G IIB T2-T3, Motor Exd IIB or ExeII
2G IIB+H2 T2-T3, Motor ExdIIc
3G IIB T2-T3, Motor ExnA (only for category 3G)
3G IIB+H2 T2-T3, Motor ExnA (only for category 3G)
• Non-conductive dust:
2D IIIB T195°C-T295°C
3D IIIB T195°C-T295°C
• Conductive dust (with IP 65 motor):
2D IIIC T195°C-T295°C
3D IIIC T195°C-T295°C
Available on request, explosion-proof versions according to the ATEX Directive for three-phase models:
For operation at temperatures from -20ºC to +60ºC, ambient (absolute) pressure from 0.8 bar to 1.1 bar, according to EN 14986.
• Gas:
2G IIB T2-T3, Motor Exd IIB or ExeII2G IIB+H2 T2-T3, Motor ExdIIc3G IIB T2-T3, Motor ExnA (only for category 3G)3G IIB+H2 T2-T3, Motor ExnA (only for category 3G)• Non-conductive dust:
2D IIIB T195°C-T295°C3D IIIB T195°C-T295°C• Conductive dust (with IP 65 motor):
2D IIIC T195°C-T295°C3D IIIC T195°C-T295°C
