FC-N
HIGH PRESSURE BACKWARD BLADES IMPELLER - DIRECT DRIVE
FC-N
FC-N
Show More
Show Less

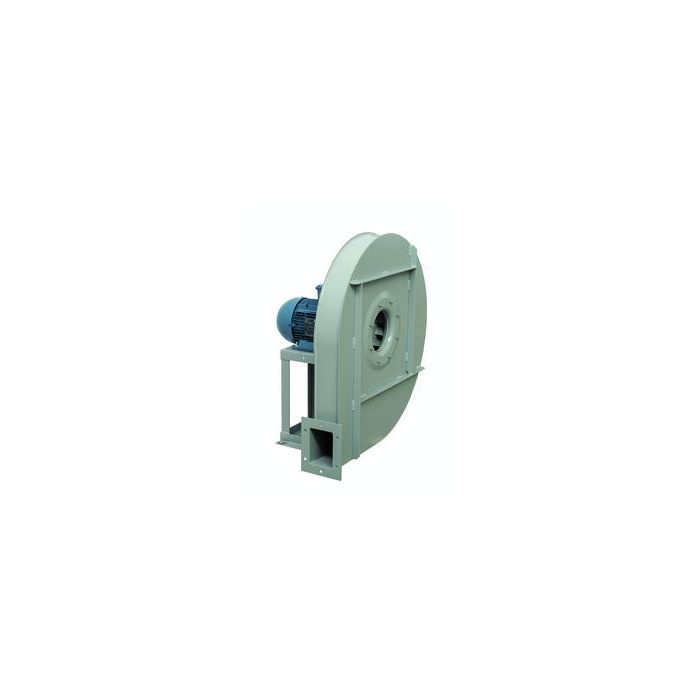

Direct drive, single inlet centrifugal fan. Manufactured from steel sheet protected with cataforesis primer + polyurethane paint finish RAL 7045.
Designed to continuously circulate air from -20ºC up to 100ºC.
Standard arrangement
• Arrangement 4: Direct drive. Impeller directly mounted on motor shaft. B3 motor is supported by the pedestal. Max air temperature 100°C. With cooling disk up to 220°C.
• Arrangement 5: Direct drive. Impeller directly mounted on motor shaft. B5 motor is fitted on casing sideplate.
• Arrangement 8: Flexible coupling. Overhung impeller. Support and motor mounted on a base outside the air stream. Max air temperature 100°C. With cooling disk up to 300°C.
Motors
2 or 4 pole, IE 3* high efficiency, three-phase 230/400V 50Hz up to motor size 112 and 400/690V 50Hz for higher motors. IP55 protection, class F.
* From 0,75kW, motor can be IE 2 and controlled by VSD.
On request
• Manufactured from different materials.
• 60 Hz versions.
• Painted in different RAL colour.
• Hot dip galvanized static parts.
• Corrosion proof construction.
• Wear proof construction.
• Motors for special applications.
• Motors suitable for VSD.
• Accessories: Flexible joints, inspection door, casing drain, AV-mounts, protection nets, filter, silencer, inlet discharge governor, valves, dampers.
• Gas tight construction.
• Thermal insulation.
Designed to continuously circulate air from -20ºC up to 100ºC.
Standard arrangement
• Arrangement 4: Direct drive. Impeller directly mounted on motor shaft. B3 motor is supported by the pedestal. Max air temperature 100°C. With cooling disk up to 220°C.
• Arrangement 5: Direct drive. Impeller directly mounted on motor shaft. B5 motor is fitted on casing sideplate.
• Arrangement 8: Flexible coupling. Overhung impeller. Support and motor mounted on a base outside the air stream. Max air temperature 100°C. With cooling disk up to 300°C.
Motors
2 or 4 pole, IE 3* high efficiency, three-phase 230/400V 50Hz up to motor size 112 and 400/690V 50Hz for higher motors. IP55 protection, class F.
* From 0,75kW, motor can be IE 2 and controlled by VSD.
On request
• Manufactured from different materials.
• 60 Hz versions.
• Painted in different RAL colour.
• Hot dip galvanized static parts.
• Corrosion proof construction.
• Wear proof construction.
• Motors for special applications.
• Motors suitable for VSD.
• Accessories: Flexible joints, inspection door, casing drain, AV-mounts, protection nets, filter, silencer, inlet discharge governor, valves, dampers.
• Gas tight construction.
• Thermal insulation.
ATEX versions
On request, explosion proof version fans in accordance with 2014/34/UE (ATEX directive):
• Gas:
2G IIB T2-T3-T4
2G IIB+H2 T2-T3-T4
3G IIB T2-T3-T4
3G IIB+H2 T2-T3-T4
• Non-conductive dust
2D IIIB T125°C-T135°C-T195°C-T295°C
3D IIIB T125°C-T135°C-T195°C-T295°C
• Conductive dust (compulsory IP65 motor):
2D IIIC T125°C-T135°C-T195°C-T295°C
3D IIIC T125°C-T135°C-T195°C-T295°C
On request, explosion proof version fans in accordance with 2014/34/UE (ATEX directive):
• Gas:
2G IIB T2-T3-T42G IIB+H2 T2-T3-T43G IIB T2-T3-T43G IIB+H2 T2-T3-T4• Non-conductive dust
2D IIIB T125°C-T135°C-T195°C-T295°C3D IIIB T125°C-T135°C-T195°C-T295°C• Conductive dust (compulsory IP65 motor):
2D IIIC T125°C-T135°C-T195°C-T295°C3D IIIC T125°C-T135°C-T195°C-T295°C
Attributes
Backward curved impeller
