FORWARD BLADES IMPELLER - DIRECT DRIVE
FS-P
FS-P
Show More
Show Less

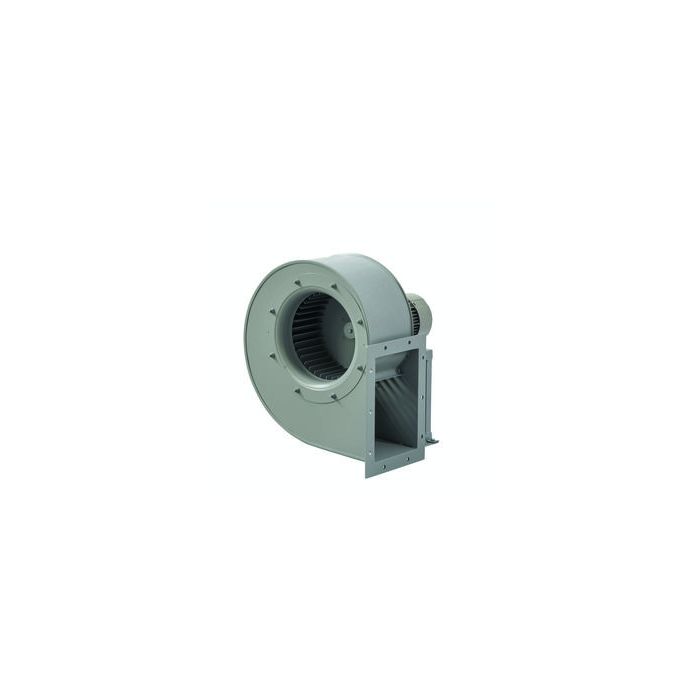

Direct drive, single inlet centrifugal fan. Manufactured from carbon steel protected with cataforesis primer + polyurethane paint finish RAL 7045.
Working temperature range: -20ºC/+100ºC continuously.
Standard arrangements
• Arrangement 4: Impeller mounted on the B3 motor shaft supported by the pedestal. Version with cooling disk up to +220°C.
• Arrangement 5: Impeller mounted on the B5 motor shaft fitted on the casing sideplate. Version with cooling disk up to +220°C.
• Arrangement 8: Flexible coupling that connects the motor to the fan shaft. Version with cooling disk up to +300°C.
Motors
2, 4 or 6 pole, IE3* high efficiency, three-phase 230/400V 50Hz up to motor size 112 and 400/690V 50Hz for higher motors. IP55 protection, class F.
*From 75kW to 200kW, the motor will be IE4.
On request
• Manufactured from different materials.
• 60 Hz versions.
• Painted in different RAL colour.
• Hot dip galvanized static parts.
• Corrosion proof construction.
• Wear proof construction.
• Motors for special applications.
• Motors suitable for VSD.
• Accessories: Flexible joints, inspection door, casing drain, AV-mounts, protection nets, filter, silencer, inlet discharge governor, valves, dampers.
• Gas tight construction.
• Thermal insulation.
Working temperature range: -20ºC/+100ºC continuously.
Standard arrangements
• Arrangement 4: Impeller mounted on the B3 motor shaft supported by the pedestal. Version with cooling disk up to +220°C.
• Arrangement 5: Impeller mounted on the B5 motor shaft fitted on the casing sideplate. Version with cooling disk up to +220°C.
• Arrangement 8: Flexible coupling that connects the motor to the fan shaft. Version with cooling disk up to +300°C.
Motors
2, 4 or 6 pole, IE3* high efficiency, three-phase 230/400V 50Hz up to motor size 112 and 400/690V 50Hz for higher motors. IP55 protection, class F.
*From 75kW to 200kW, the motor will be IE4.
On request
• Manufactured from different materials.
• 60 Hz versions.
• Painted in different RAL colour.
• Hot dip galvanized static parts.
• Corrosion proof construction.
• Wear proof construction.
• Motors for special applications.
• Motors suitable for VSD.
• Accessories: Flexible joints, inspection door, casing drain, AV-mounts, protection nets, filter, silencer, inlet discharge governor, valves, dampers.
• Gas tight construction.
• Thermal insulation.
ATEX versions
On request, explosion proof version fans in accordance with 2014/34/UE (ATEX directive):
• Gas:
2G IIB T2-T3-T4
2G IIB+H2 T2-T3-T4
3G IIB T2-T3-T4
3G IIB+H2 T2-T3-T4
• Non-conductive dust
2D IIIB T125°C-T135°C-T195°C-T295°C
3D IIIB T125°C-T135°C-T195°C-T295°C
• Conductive dust (compulsory IP65 motor):
2D IIIC T125°C-T135°C-T195°C-T295°C
3D IIIC T125°C-T135°C-T195°C-T295°C
On request, explosion proof version fans in accordance with 2014/34/UE (ATEX directive):
• Gas:
2G IIB T2-T3-T42G IIB+H2 T2-T3-T43G IIB T2-T3-T43G IIB+H2 T2-T3-T4• Non-conductive dust
2D IIIB T125°C-T135°C-T195°C-T295°C3D IIIB T125°C-T135°C-T195°C-T295°C• Conductive dust (compulsory IP65 motor):
2D IIIC T125°C-T135°C-T195°C-T295°C3D IIIC T125°C-T135°C-T195°C-T295°C
Attributes
Forward curved impeller
