TPSB-ECOWATT
Centrifugal Roof Mounted Fans
TPSB ECOWATT Series
TPSB ECOWATT Series
Show More
Show Less

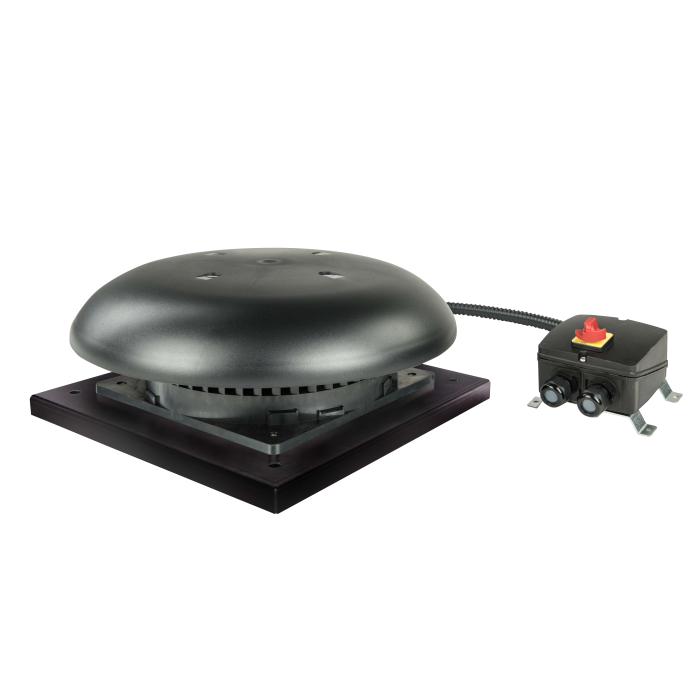

Range of centrifugal roof mounted fans in horizontal discharge format, suitable for many roof extract ventilation applications, including housing ventilation, commercial offices, etc…
Description
- Very low profile design.
- High efficiency centrifugal backward curved impeller and motor support manufactured from high strength black injection moulded plastic.
- Cowl manufactured from weatherproof injection moulded plastic.
- Bases manufactured from sheet steel protected by cataphoresis primer and black polyester paint coating.
- Supplied with IP65 remote terminal box and ON-OFF isolator switch.
- Fan speed adjustable with the potentiometer placed in the connection box or with an external control type REB ECOWATT.
- Analogical input with terminals in the connection box to control the fan with 0-10V input signal.
Motors
Brushless EC high-efficient and low consumption motor, with external rotor, IP44.
Electrical supply 230V±10%/50-60Hz
Description
- Very low profile design.
- High efficiency centrifugal backward curved impeller and motor support manufactured from high strength black injection moulded plastic.
- Cowl manufactured from weatherproof injection moulded plastic.
- Bases manufactured from sheet steel protected by cataphoresis primer and black polyester paint coating.
- Supplied with IP65 remote terminal box and ON-OFF isolator switch.
- Fan speed adjustable with the potentiometer placed in the connection box or with an external control type REB ECOWATT.
- Analogical input with terminals in the connection box to control the fan with 0-10V input signal.
Motors
Brushless EC high-efficient and low consumption motor, with external rotor, IP44.
Electrical supply 230V±10%/50-60Hz
Attributes
IP65 remote terminal box
V0 fireproof plastic remote terminal box with built-in stop switch.
High efficiency centrifugal backward impeller
Low maintenance and low consumption
Patented design
High performance
