CRHB/T-N ECOWATT
Low Consumption Roof Mounted Fans
CRHB-N ECOWATT / CRHT-N ECOWATT Series
CRHB-N ECOWATT / CRHT-N ECOWATT Series
Show More
Show Less

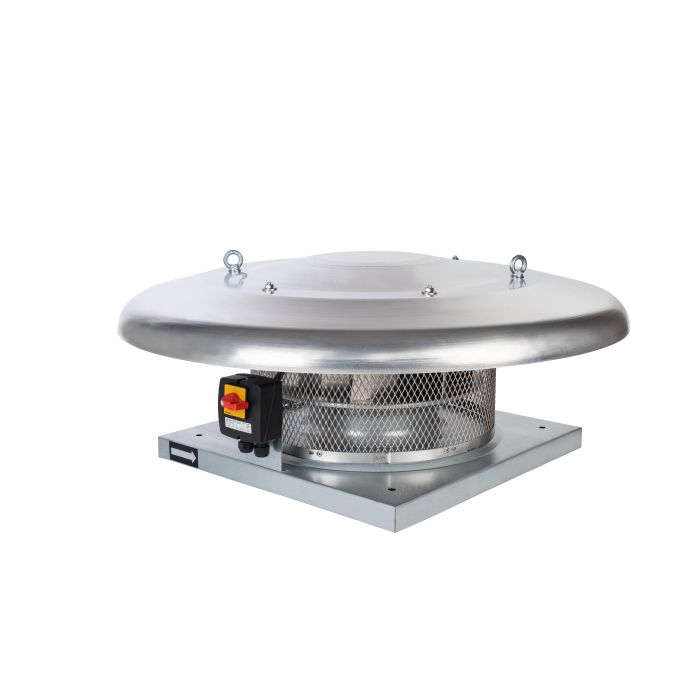

Low profile centrifugal roof-fans, horizontal discharge, composed of:
-Centrifugal backward curved impeller.
-Steel finger proof guard.
-Base manufactured from galvanised sheet steel and aluminium cowl.
-ON-OFF electrical isolation switch.
Direct supply brushless EC motor, high performance, low consumption, ball bearings, built-in thermal protector and able to work at temperatures from -20ºC to +40ºC:
· Single-phase version 230V±10%, 50/60Hz, IP44.
· Three-phase version 400V±10%, 50/60Hz, IP54.
Fan speed adjustable with the potentiometer placed in the connection box or with an external control type REB ECOWATT.
Analogical input with terminals in the terminal box to control the fan with 0-10V input signal.
Attributes
Low profile
External rotor motor to limit the height of the fan.
Direct drive backward
centrifugal impeller with brushless EC motor.
Bird proof guard.
ON-OFF electrical isolated switch.
