ORKA
SINGLE DWELLING AND MULTI DWELLING BLOCKS VMC - Heat recovery units
ORKA
Show More
Show Less

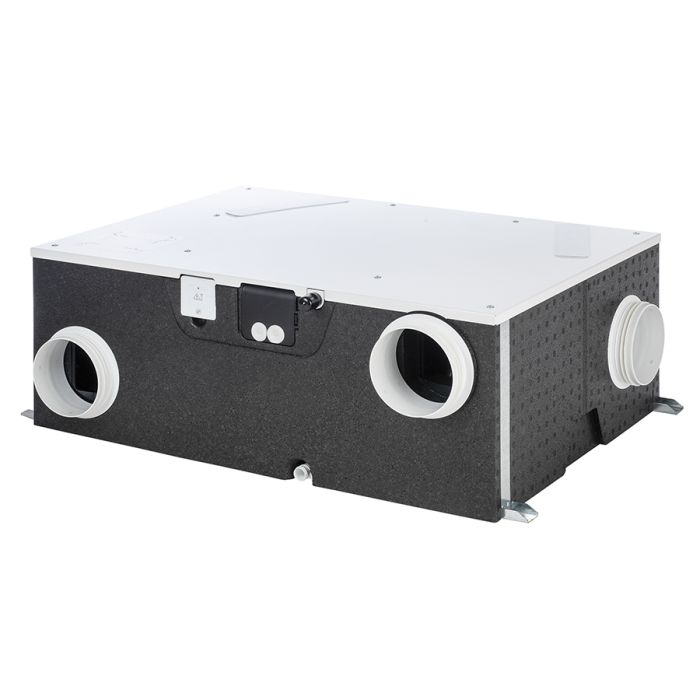

Whole house heat recovery unit for single dwelling houses, with crossflow heat exchanger. It guarantees continuous air replacement in single dwelling houses up to 90% of efficiency.
Equipped with 2 centrifugal fans (a supply and an extract fan), each with a 230V-50Hz motor, Class B, 3-speed, designed for continuous operation, and terminal housing to connect the power supply cable.
100% manual bypass.
Equipped with filter change alarm.
Multi-position system. It can be mounted on the floor and into the false ceiling.
Multi-position system. It can be mounted on the floor and into the false ceiling.
To ensure good air quality, is equipped with a M5 filters: (ISO ePM10 50%, a 210 m3/h) on the inlet side and a G4 (ISO coarse 65%, a 210 m3/h) on the extraction side.
In case of low outside temperatures it is necessary to install a pre-heating coil.
Equipped with 2 centrifugal fans (a supply and an extract fan), each with a 230V-50Hz motor, Class B, 3-speed, designed for continuous operation, and terminal housing to connect the power supply cable.
100% manual bypass.
Equipped with filter change alarm.
Multi-position system. It can be mounted on the floor and into the false ceiling.
Multi-position system. It can be mounted on the floor and into the false ceiling.
To ensure good air quality, is equipped with a M5 filters: (ISO ePM10 50%, a 210 m3/h) on the inlet side and a G4 (ISO coarse 65%, a 210 m3/h) on the extraction side.
In case of low outside temperatures it is necessary to install a pre-heating coil.
Attributes
Easy maintenance PPE body that provides thermal insulation and lightness.
ORKA HR, high efficient counter flow heat exchanger
Manufactures from polypropylene plates.
ORKA ST, high efficient counter flow heat exchanger
Manufactures from polypropylene plates.
Double drain for floor or false ceiling installation.
Integrated rubber seals.
Circular connection flange with integrated rubber seals.
Incorporated remote control with double-switch:
- by-pass activation.
- speed change.
TimerDirty filter alarm, by electronic removable time-switch.
