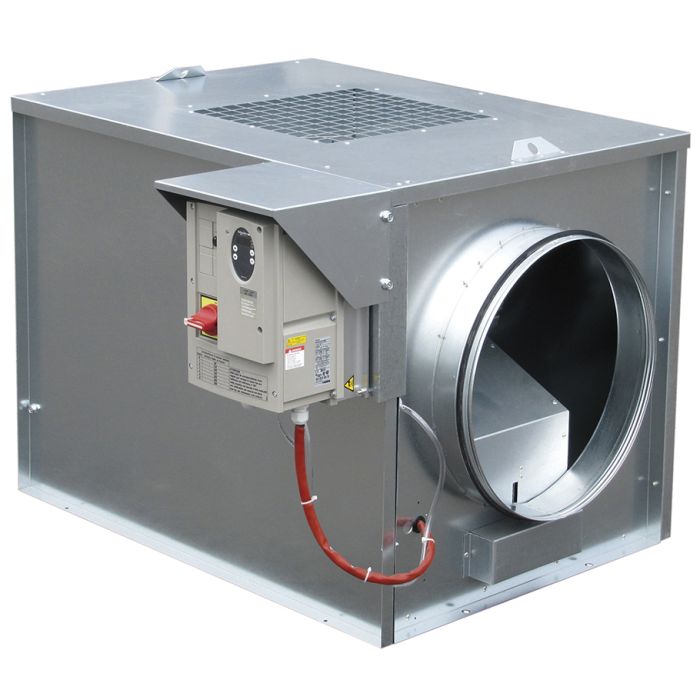

CACT-N ECO
VENTILATION CAISSON C4 1/2h
CACT-N Series ECOWATT
CACT-N Series ECOWATT
Show More
Show Less
APPLICATIONS
Mechanical ventilation in collective housing or office spaces
Air intake in office spaces
Comfort ventilation in public buildings and general office spaces
Compliant with NF XP P50-410 standard, DTU 68-1 reference, and the New Acoustic Regulation
FEATURES
Double-inlet centrifugal casing made of galvanized steel sheet
Belt and pulley drive
General power supply: single-phase 230V
Built-in pressure switch and proximity switch
Frequency converter: output to motor in three-phase 230V
Constant pressure across the flow range: energy savings up to 40%
Reduced noise level
Ideally designed for humidity-controlled applications
Quick and sealed installation (with gasket)
Installation in attics or on terraces
ECO ENERGY SYSTEM
Constant pressure across the flow range:
Energy savings up to 40%
Maintains constant pressure
Automatic operation through continuous network pressure measurement and sending information
to the frequency converter which adjusts the motor speed
KEY BENEFITS
+ Constant pressure
+ Noise level reduction
+ Easier maintenance: removable fan motor
+ Series-mounted proximity switch and pressure switch
+ Quick and sealed installation (with gasket)
Mechanical ventilation in collective housing or office spaces
Air intake in office spaces
Comfort ventilation in public buildings and general office spaces
Compliant with NF XP P50-410 standard, DTU 68-1 reference, and the New Acoustic Regulation
FEATURES
Double-inlet centrifugal casing made of galvanized steel sheet
Belt and pulley drive
General power supply: single-phase 230V
Built-in pressure switch and proximity switch
Frequency converter: output to motor in three-phase 230V
Constant pressure across the flow range: energy savings up to 40%
Reduced noise level
Ideally designed for humidity-controlled applications
Quick and sealed installation (with gasket)
Installation in attics or on terraces
ECO ENERGY SYSTEM
Constant pressure across the flow range:
Energy savings up to 40%
Maintains constant pressure
Automatic operation through continuous network pressure measurement and sending information
to the frequency converter which adjusts the motor speed
KEY BENEFITS
+ Constant pressure
+ Noise level reduction
+ Easier maintenance: removable fan motor
+ Series-mounted proximity switch and pressure switch
+ Quick and sealed installation (with gasket)
