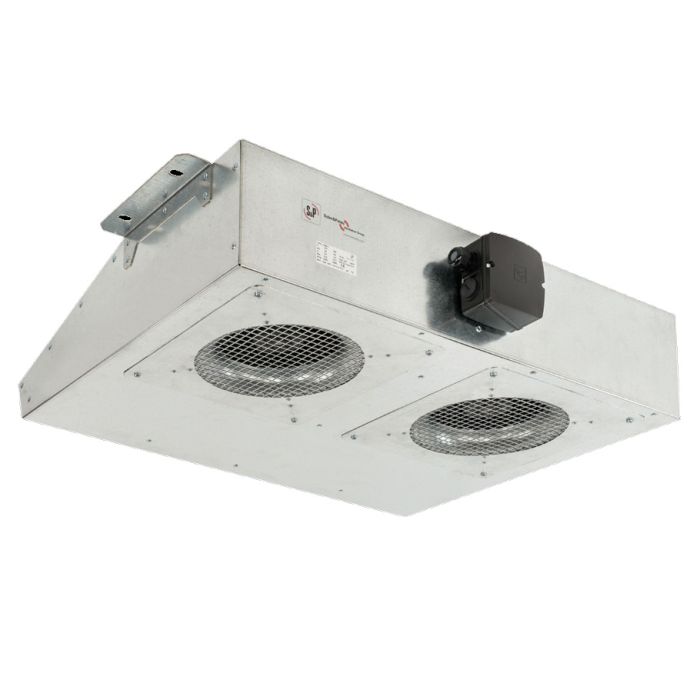

IFAB
CENTRIFUGAL JET FANS
IFAB-IFEB Series
IFAB-IFEB Series
Show More
Show Less
Applications
Induction fans to induce air movement in enclosed car parking.
Modelvonly for ventilation.
Description
- Thrust 11N / 12N (50/60Hz).
- Backward curved centrifugal impeller in plastic and balanced in accordance with ISO 1940-1, G6.3.
- Fan casing in galvanised steel.
- External terminal box.
- Supplied with inlet steel guard.
Motors
- Single phase 230 V -50/60 Hz, IP44.
- Class F insulation.
- Bearings L10 - 20,000 hours.
- Single speed 2 pole winding.
- Maximum ambient temperature +60ºC.
On request
- Version IFEB with EC motor.
- Maximum ambient temperature +50ºC.
Induction fans to induce air movement in enclosed car parking.
Modelvonly for ventilation.
Description
- Thrust 11N / 12N (50/60Hz).
- Backward curved centrifugal impeller in plastic and balanced in accordance with ISO 1940-1, G6.3.
- Fan casing in galvanised steel.
- External terminal box.
- Supplied with inlet steel guard.
Motors
- Single phase 230 V -50/60 Hz, IP44.
- Class F insulation.
- Bearings L10 - 20,000 hours.
- Single speed 2 pole winding.
- Maximum ambient temperature +60ºC.
On request
- Version IFEB with EC motor.
- Maximum ambient temperature +50ºC.
Attributes
Low profile, suitable for low parking height.
Protection guard on fan inlet.
External terminal box for ease of connection.
