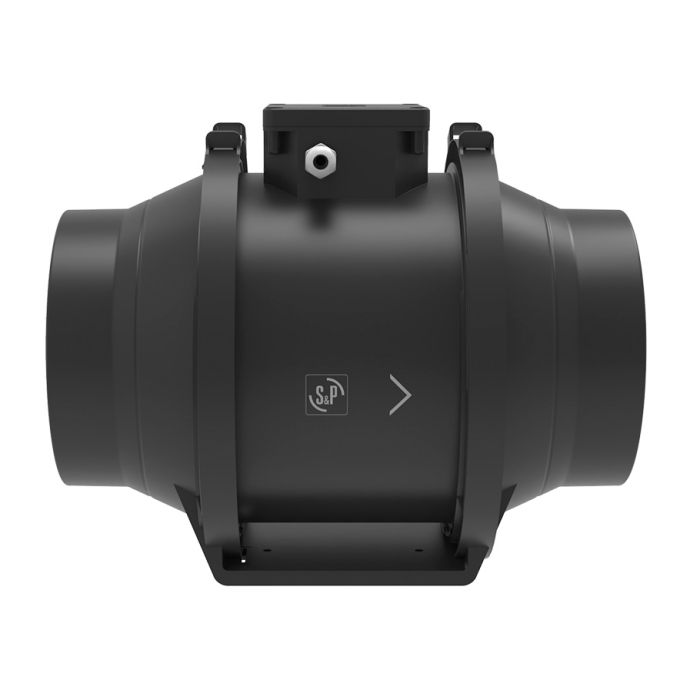

IN-LINE MIXED FLOW DUCT FANS
TD-ECOWATT P Series

Show Less

Consult Available Models

Access to Technical Information

Description Details

Consult Available Models

New competitive In-Line mixed-flow series simplified to two sizes with built-in potentiometer accessible outside the terminal box. Manufactured with recycled plastics and equipped with high efficiency brushless EC motors. The design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.

Motor
Brushless EC motor:

230V±10% 50/60Hz, Class B, IP44.
Speed adjustable 100% via built-in potentiometer accesible outside terminal box or via 0-10V external signal
Ball bearings and thermal protection with manual reset
Working temperature: -20/40ºC
