CROSS-FLOW HEAT RECOVERY UNITS
ENERGY-BOX Serie

Heat recovery systems with cross-flow heat exchanger, certified by Eurovent, configurable inlets and outlets with airtight joints, G4 filters (Merv 7) for air supply and extraction, with the possibility to add a second filter inside the unit (accessory).

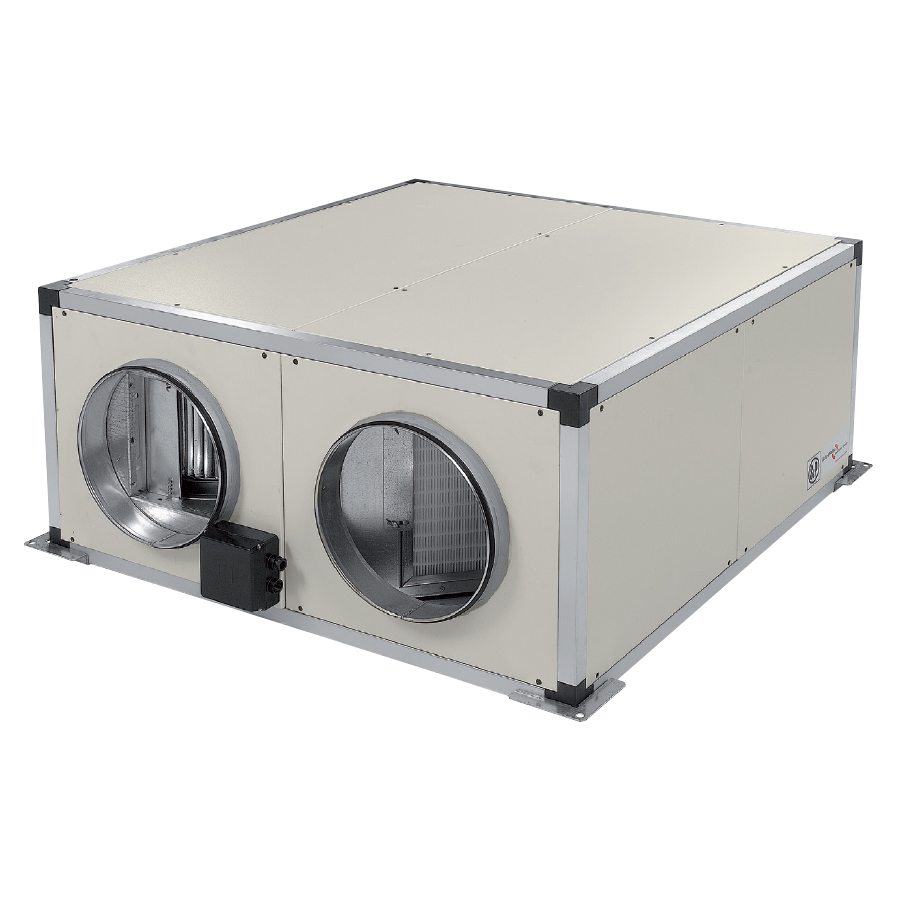

The horizontal versions are accessible allowing for maintenance on both the lower and side parts of the unit. Horizontal versions sizes 500 to 3300 feature specially designed supports to install it on false ceilings. Horizontal versions sizes 4400 to 8000, as well as all vertical versions, come with feet to allow floor installation.
For outdoor installation, units must be protected by rain canopy and wire protection guards (accessories). The ENERGYBOX version, made in single panel, due to its low thermal insulation, is only suitable for outdoor installation in climates with outdoor temperatures above 0 ºC.


Applications
Public buildings, commercial offices, restaurants, schools and stores.

Versions
ENERGY-BOX
Horizontal version. With an external structure made of a single galvanised sheet panel, with 6 mm-thick polyethylene foam insulation.

ENERGY-BOX DP
Horizontal version. With an external structure made of a double galvanised sheet panel and white PVC exterior film. With M0 inflammable thermo-acoustic insulation made of 25mm-thick mineral wool.

ENERGY-BOX DP-V
Vertical version. With an external structure made of a double galvanised sheet panel and white PVC exterior film. With M0 inflammable thermo-acoustic insulation made of 25 mm-thick mineral wool.


Motors
Single-phase 230V 50Hz in models 500 to 3300, and three-phase 400V/3Ph/50Hz in models 4400 to 8000.


Other information
The 8000 model is only available in DP versions (with double panel structure). Vertical versions are only available in the ENERGY-BOX DP V double panel finish.

THIS PRODUCT DOES NOT COMPLY WITH THE ERP EUROPEAN ECODESIGN DIRECTIVE
This series is not suitable for sale in member states of the European Union
